Product Advantages and Features
High-Capacity Power Performance
Designed for commercial and industrial use, the system delivers up to 125 kW AC output with an energy capacity of 261 k Wh, supporting stable operation for high-load energy applications.
Integrated Outdoor Energy Storage Solution

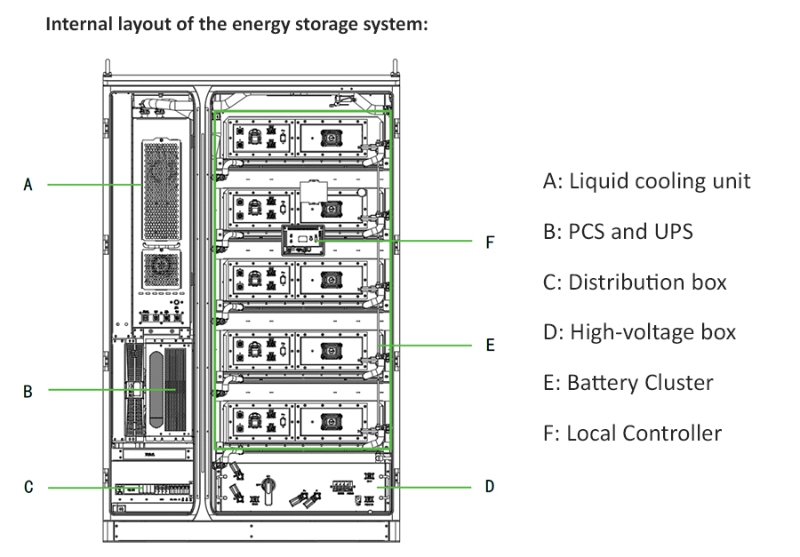

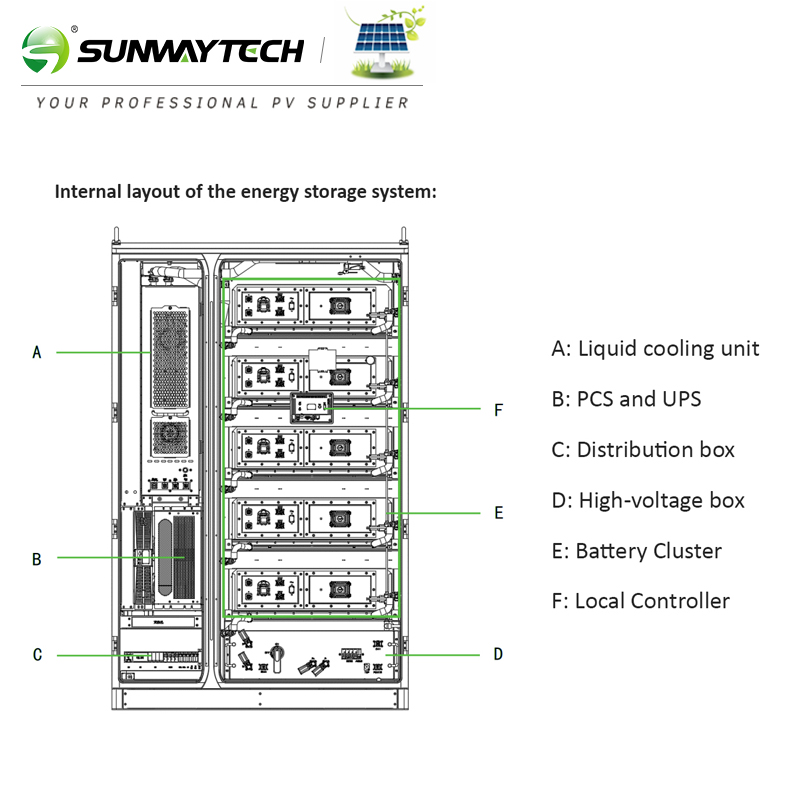

The all-in-one cabinet combines lithium iron phosphate batteries, modular PCS, intelligent EMS and BMS, power distribution, fire protection, and environmental control systems into a compact outdoor design.
Efficient Liquid Cooling Technology
An advanced liquid cooling system ensures precise thermal control, improving operational efficiency and supporting long-term battery performance in challenging environments.
Robust Protection & System Safety
With an IP55-rated enclosure, electrical isolation, and continuous system monitoring, the solution is engineered for reliable and secure operation in outdoor installations.
Intelligent Communication & Expansion
Supports multiple communication protocols including CAN, Ethernet, and RS485. The modular system design allows flexible configuration and future capacity expansion.
Factory-Assembled for Fast Deployment
Pre-assembled and tested prior to shipment, the system enables rapid installation on site, reducing commissioning time and minimizing labor requirements.
Product Information Sheet
|
Battery Parameters
|
SWMonet-125CL
|
|
Battery Rated Capacity
|
261kWh
|
|
Battery Rated Voltage
|
832V
|
|
Battery Voltage Range
|
728V~936V
|
|
Battery Type
|
Lithium iron phosphate battery(LFP)
|
|
Battery Cell Capacity
|
1p*52S*5S
|
|
Cell Capacity
|
314Ah
|
|
Max.Charging/Discharging Power
|
0.5P
|
|
Max.Charge/Discharge Current
|
157A
|
|
Photovoltaic Parameters
|
|
Rated Power
|
100kW
|
|
PV Voltage Range
|
250~500V(MPPT)
|
|
PV Max.Current
|
160A*2
|
|
MPPT Quantity
|
2
|
|
AC Parameters
|
|
Rated AC Power
|
125kw
|
|
Rated AC Current
|
180A
|
|
Rated AC Voltage
|
400V，3W+N+PE
|
|
Rated AC Frequency
|
50/60Hz
|
|
THDi
|
<3(Rated power)
|
|
Power Factor
|
1 leading to +1 lagging
|
|
THDv
|
<3%(linear load)
|
|
Protection Level
|
IP55
|
|
Isolation Mode
|
Isolation transformer
|
|
Shutdown Self-discharge
|
<100W(Without transformer)
|
|
Display
|
LCD
|
|
Relative Humidity
|
0~95%(No condensation)
|
|
Noise
|
<78dB
|
|
Ambient Temperature
|
-25°C~+60°C(Derating above 45°C)
|
|
Cooling Mode
|
Intelligent liquid-cooled
|
|
Altitude
|
3000m(>2000m derating)
|
|
BMS Communication
|
CAN
|
|
EMS Communication
|
Ethernet/485
|
|

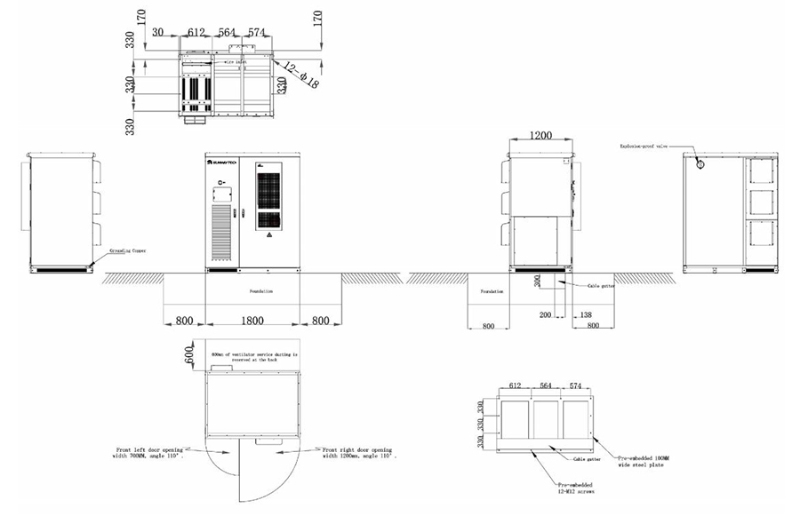

Dimension(W*D*H)
|
1600*1350*2300mm
|
|
Weight(approx.)
|
3330kg
|

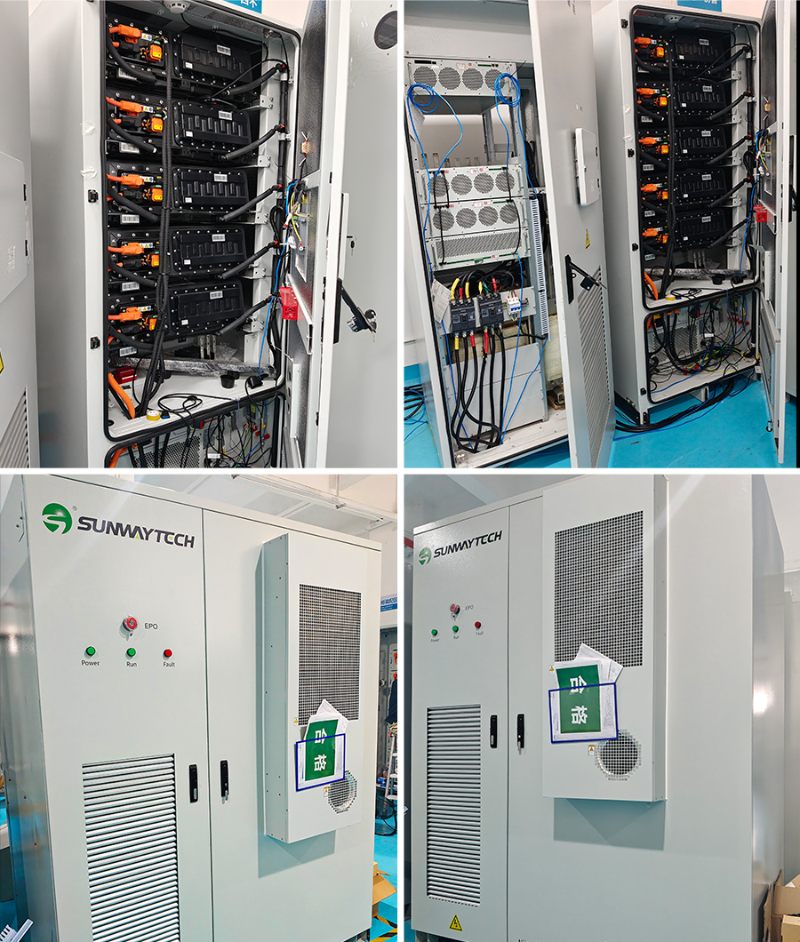

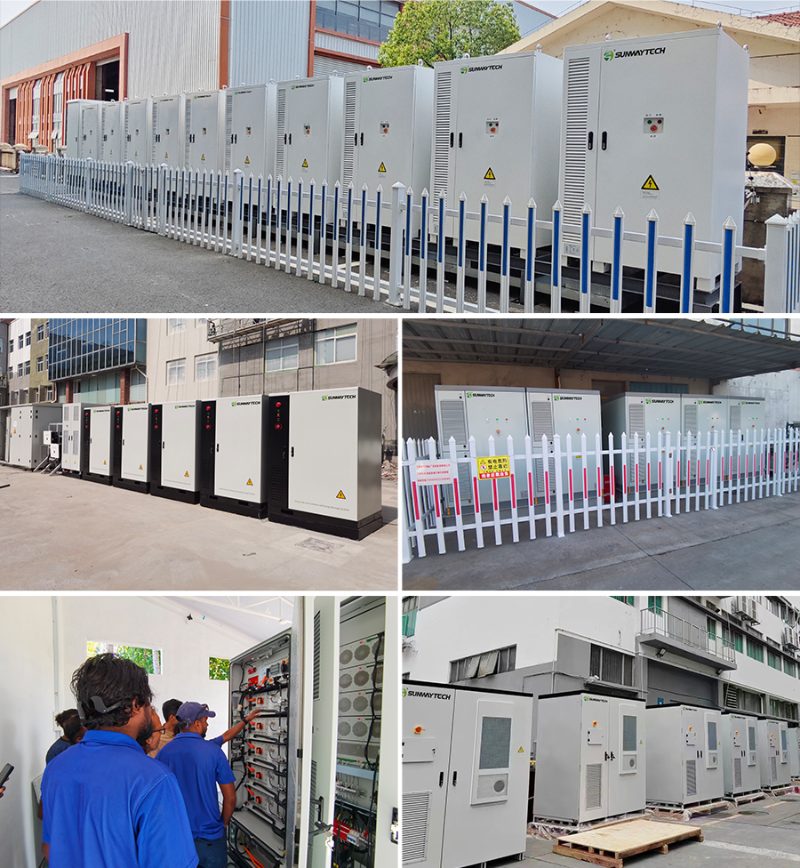

Product details image
