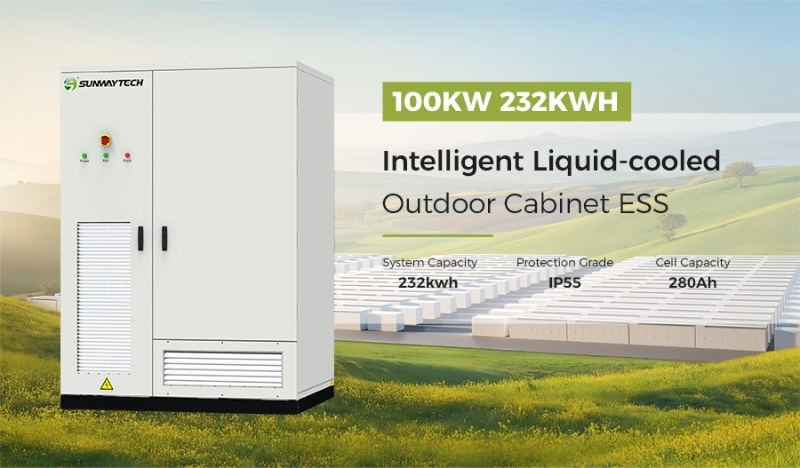

Product Advantages and Features
Intelligent Liquid Cooling
Advanced liquid cooling technology ensures efficient heat dissipation, improved system stability, and extended battery lifespan.
Integrated Outdoor System

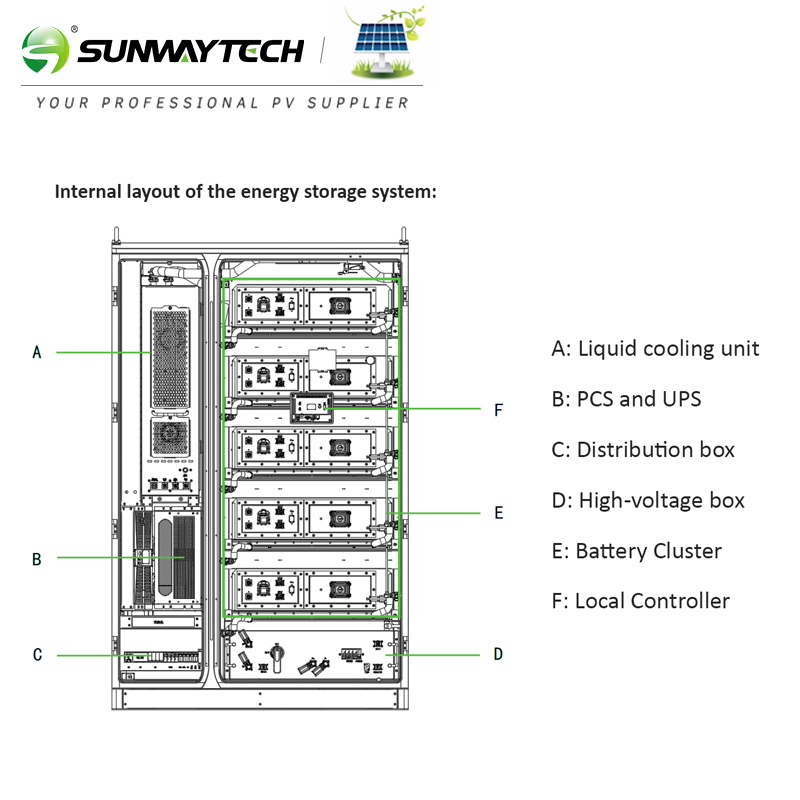

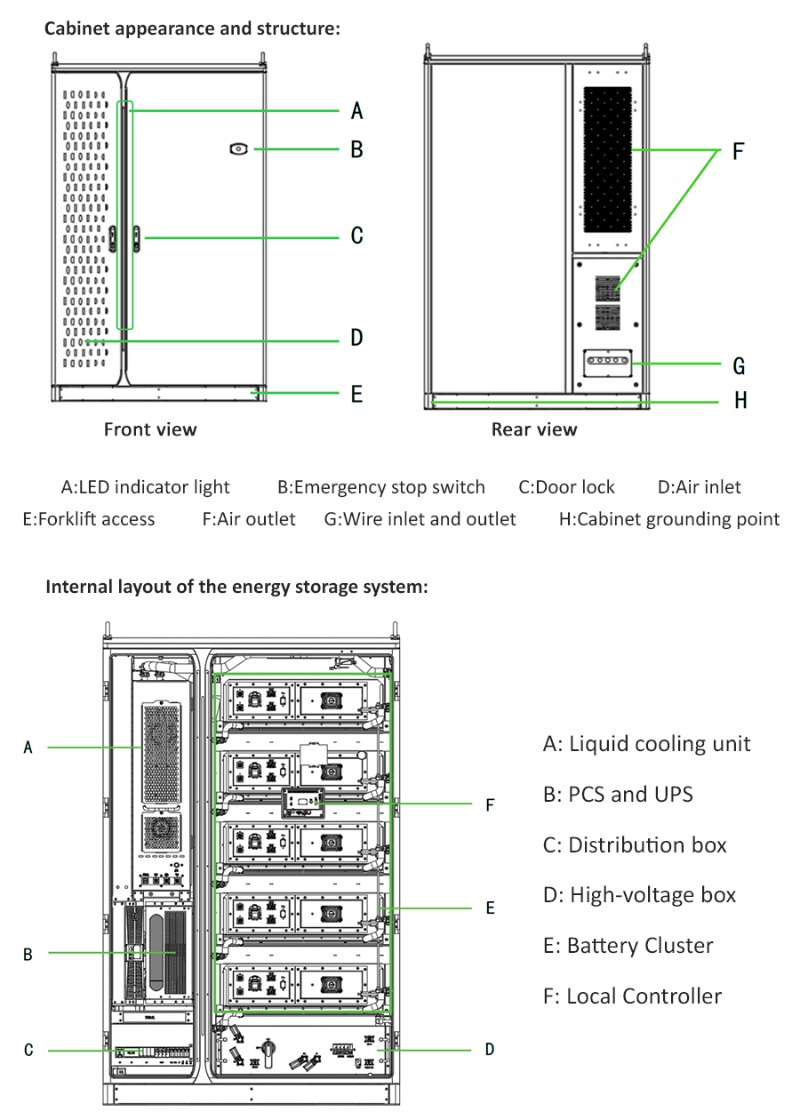

An all-in-one cabinet consolidates lithium iron phosphate batteries, modular PCS, EMS, BMS, power distribution, and environmental and fire safety controls into a compact, weather-resistant unit.
High-Capacity Power Performance
Delivers 100 kW AC output with 232 kWh energy capacity, supporting stable operation for commercial and industrial energy storage applications.
Reliable Safety & Monitoring
IP55-rated enclosure, electrical isolation, and continuous real-time monitoring provide robust protection and operational safety.
Factory-Assembled & Ready to Deploy
Pre-assembled and pre-tested in the factory, the system arrives ready for rapid installation, reducing on-site labor and commissioning time.
Product Information Sheet
|
Battery Parameters
|
SWMonet-100CL
|
|
Battery Rated Capacity
|
232kWh
|
|
Battery Rated Voltage
|
832V
|
|
Battery Voltage Range
|
728V~936V
|
|
Battery Type
|
Lithium iron phosphate battery(LFP)
|
|
Battery Cell Capacity
|
1p*52S*5S
|
|
Cell Capacity
|
280Ah
|
|
Max.Charging/Discharging Power
|
0.5P
|
|
Max.Charge/Discharge Current
|
140A
|
|
Photovoltaic Parameters
|
|
Rated Power
|
100kW
|
|
PV Voltage Range
|
250~500V(MPPT)
|
|
PV Max.Current
|
160A*2
|
|
MPPT Quantity
|
2
|
|
AC Parameters
|
|
Rated AC Power
|
100kw
|
|
Rated AC Current
|
144A
|
|
Rated AC Voltage
|
400V,3W+N+PE
|
|
Rated AC Frequency
|
50/60Hz
|
|
THDi
|
<3(Ratedpower)
|
|
Power Factor
|
1 leading to +1 lagging
|
|
THDv
|
<3%(linear load)
|
|
Protection Level
|
IP55
|
|
Isolation Mode
|
Isolation transformer
|
|
Shutdown Self-discharge
|
<100W(Without transformer)
|
|
Display
|
LCD
|
|
Relative Humidity
|
0~95%(No condensation)
|
|
Noise
|
<78dB
|
|
Ambient Temperature
|
-25°C~+60°℃(Derating above 45°C)
|
|
Cooling Mode
|
Intelligent liquid-cooled
|
|
Altitude
|
3000m(>2000m derating)
|
|
BMS Communication
|
CAN
|
|
EMS Communication
|
Ethernet/485
|
|

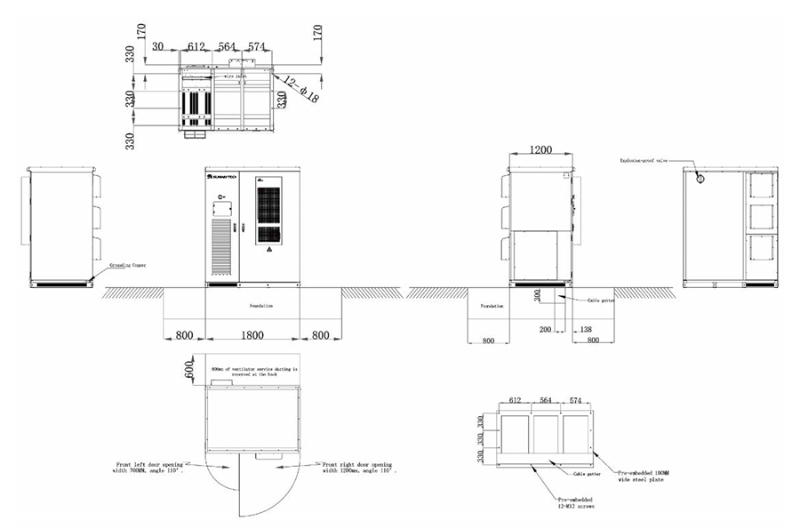

Dimension(W*D*H)
|
1600*1350*2300mm
|
|
Weight(approx.)
|
3240kg
|

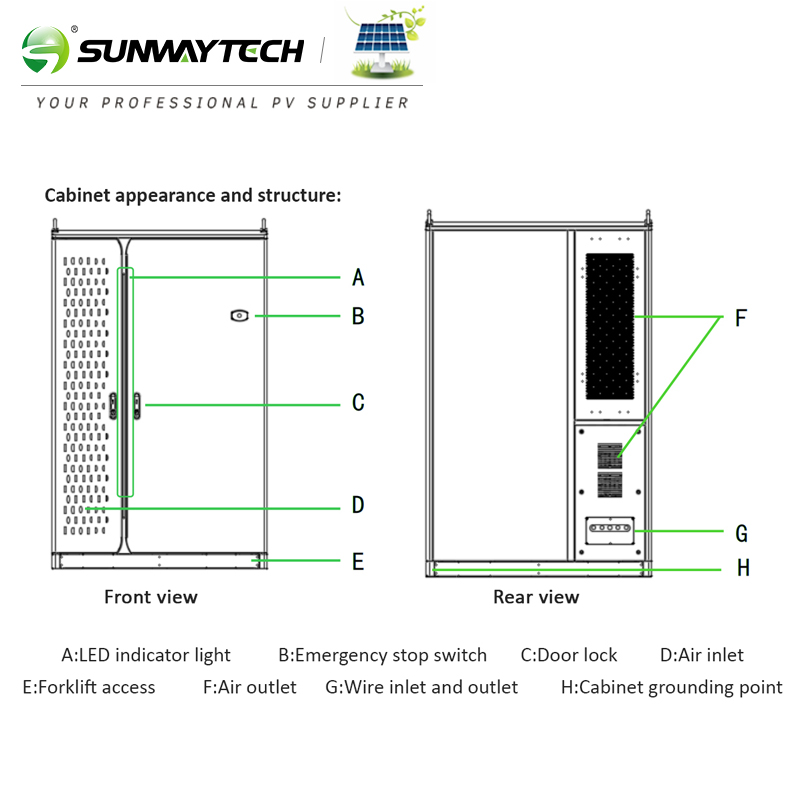

Product details image
