SUNWAY 5kWh All-in-One Home ESS
Description :
SUNWAY 5kWh All-in-One Home ESS is a sophisticated power solution that seamlessly integrates a 6kW hybrid inverter, a 5.12kWh lithium battery, and a Wi-Fi module that allows users to monitor system status at any time through a mobile app. Designed for optimal efficiency and adaptability, the device can receive power from the power grid and two MPPT inputs. It reliably outputs a maximum of 6kW AC to power a variety of household appliances, stores excess power to the battery, or feeds energy back to the grid, ensuring both economic benefits and highly flexible energy use for the homeowner.
Product Advantages and Features
High-Performance Output:
The system is engineered for robust performance, supporting 150% PV oversizing and 110% AC overloading output. Additionally, it handles 150% backup power output for 10 seconds and supports 200% AC input.
Advanced Safety & Lifespan:
The unit utilizes lithium iron phosphate batteries, providing high safety and a long lifespan while supporting low-voltage battery systems for enhanced protection. It is equipped with a self-developed battery management system (BMS) with protective functions like over-discharge, overcharge, overcurrent, and temperature protection.
Seamless Backup & Integration:
It features a rapid 10ms EPS switch time for instantaneous backup during grid failures. The system is highly versatile, remaining compatible with grid voltage or diesel generator power supplies.
Intelligent Energy Management:
The device supports smart load management and allows a rapid battery charge/discharge current up to 80A. Furthermore, it allows users to disable feed-in, meeting the regulation requirements of different regions.
Flexible Scalability:
The system architecture easily accommodates growing energy needs by supporting parallel operation with up to 5 inverters.
All-Weather Durability & Monitoring:

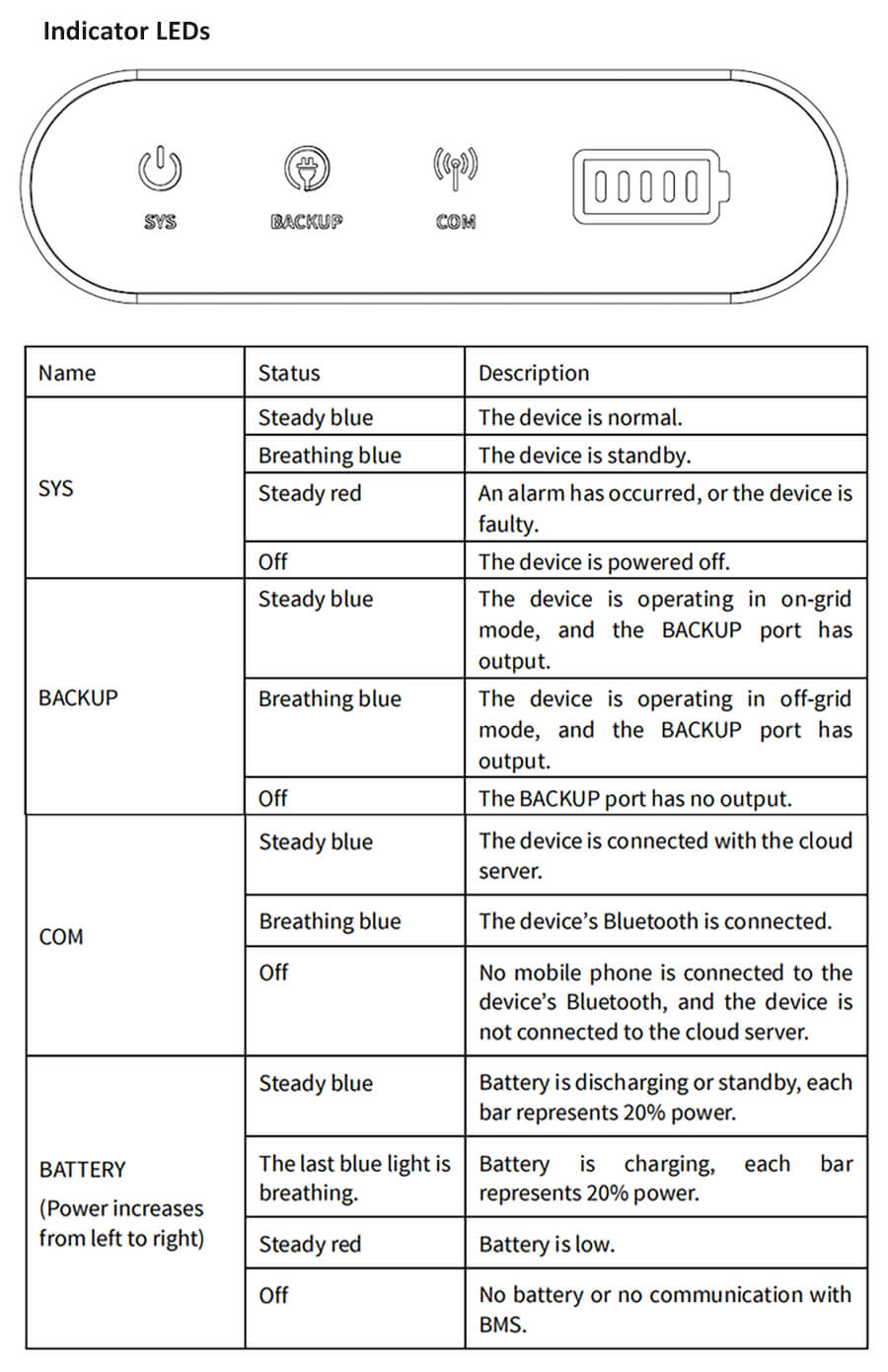

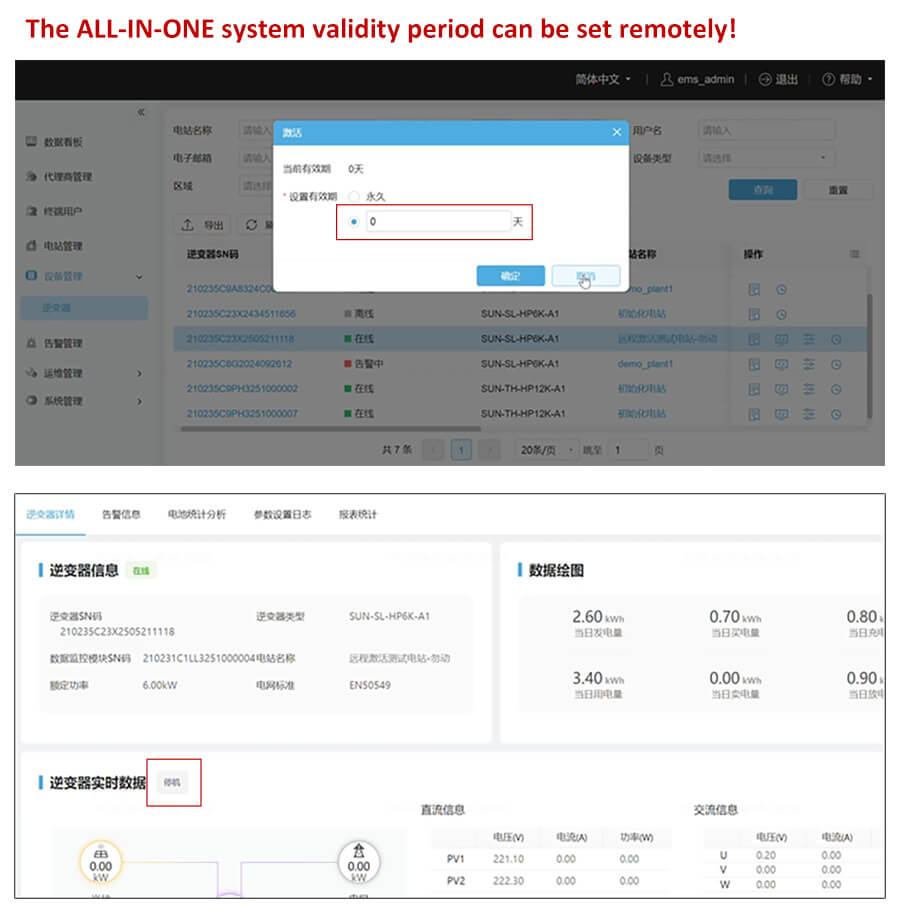

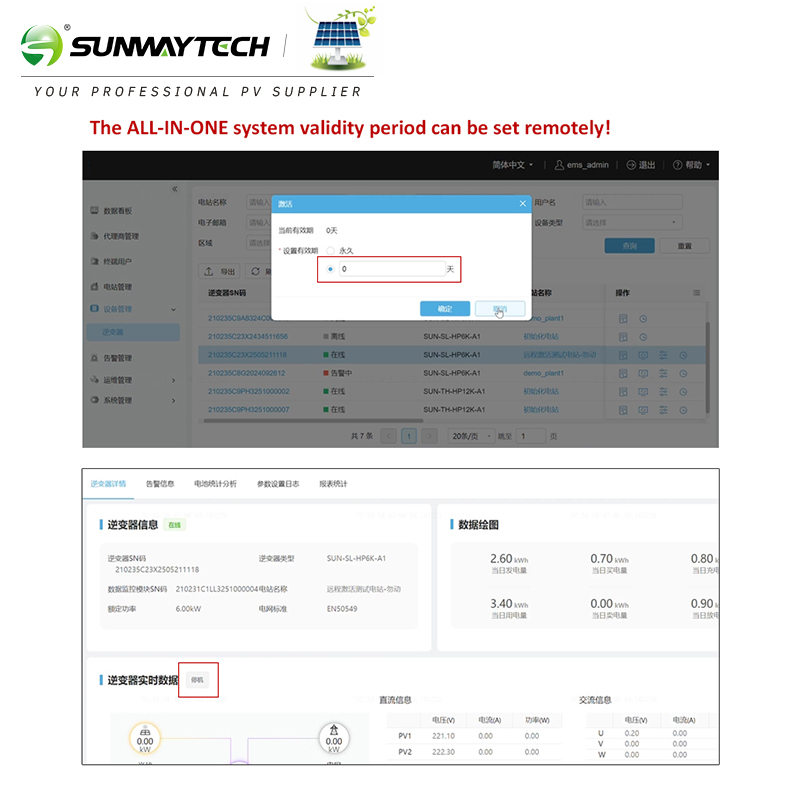

An IP66 protection rating allows for safe and reliable outdoor use. The integrated Wi-Fi connection supports remote monitoring on an app, giving users complete visibility over their system.
Product Information Sheet
| PV String Input Data |
SW6KW5KWH-IO-SL-A |
| Max. PV Input Power |
5400W |
| Max. PV Input Voltage |
600V |
| Rated PV Input Voltage |
360V |
| Start-up Voltage |
120V |
| MPPT Voltage Range |
100~550V |
| Full Load MPPT Voltage Range |
280~500V |
| Max. PV Input Current |
16A/16A |
| Max. DC Short Circuit Current |
20A/20A |
| No.of MPPT Trackers |
2 |
| Battery Input Data |
| Battery Type |
Li-ion |
| Battery Voltage Range |
40~60V |
| Max. Discharging/Charging Current |
80A |
| AC input/output data(On-grid) |
| Rated AC Output Power |
6000W |
| Max. AC Output Apparent Power |
6600VA |
| Grid Type |
Single Phase |
| Rated AC Voltage |
220V/230V/240V，L/N/PE |
| Rated AC Frequency |
50/60Hz |
| Rated AC Output Current |
16.4/15.7/15A |
| Max. AC Output Current |
18/17.2/16.5A |
| Power Factor |
0.8 leading to 0.8 lagging |
| AC Output Data(Back-up) |
| Rated Output Power |
6000W |
| Max. Output Apparent Power |
6600VA |
| Peak Output Apparent Power |
7200W@60s,6600W@10s |
| Rated Output Voltage |
230V,L/N/PE |
| Rated Output Frequency |
50/60Hz |
| Switch Time |
10ms |
| Working Efficiency |
| Max. Efficiency |
97.23% |
| Euro Efficiency |
96.59% |
| MPPT Efficiency |
>99% |
| Battery |
| Rated Energy |
5.12kWh |
| Rated Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Voltage Range |
43.2V to 58.4V |
| Rated Discharge/Charge Current |
50A |
| Max Discharge/Charge Current |
100A |
| Cycle Life |
26000(25±2℃, 0.5C/0.5C,70%EOL) |
| Communication |
CAN |
| General Data |
| User Interface |
LED & APP |
| Communication With BMS |
CAN |
| Communication With Portal |
WiFi+LAN/4G(Optional) |

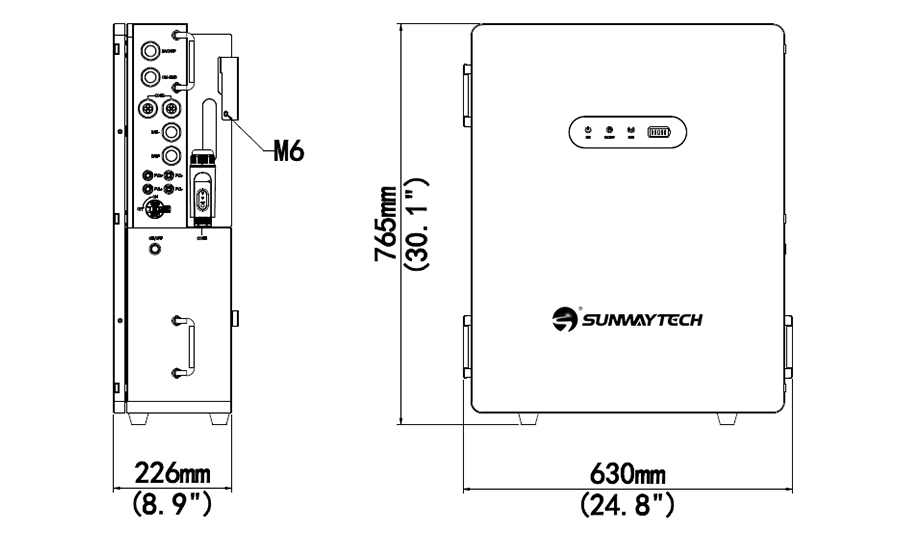

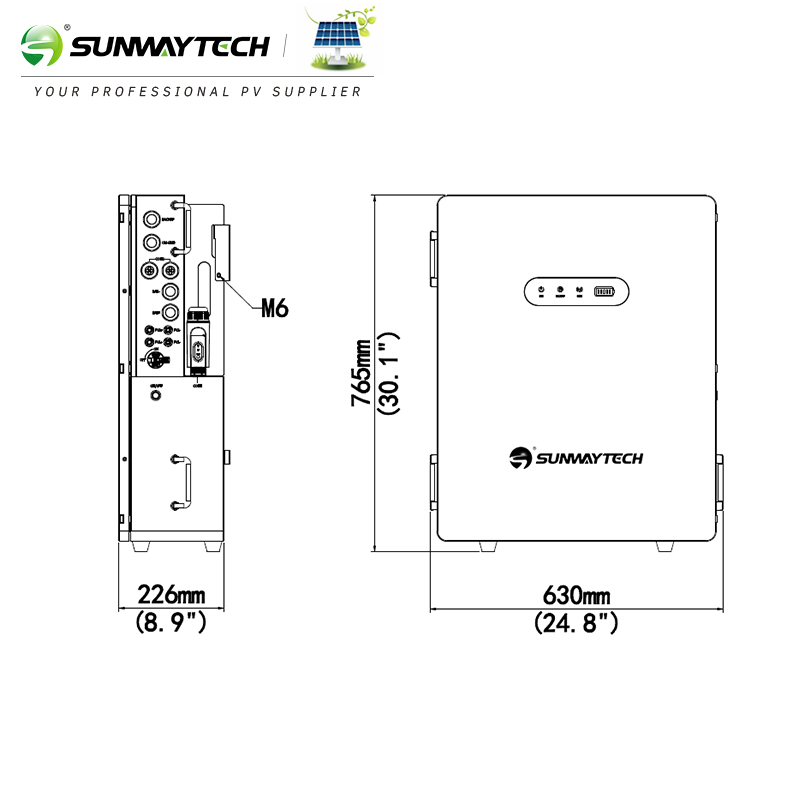

| Dimension(WxDxHmm) |
630*226*765mm |
| Weight |
63.8kg |
| Ingress Protection |
IP66 |
| Warranty |
10 Years |
| Operating Temperature Range |
-25~60℃ |
| Storage Temperature Range |
-25~85℃ |
| Operation Relative Humidity |
≤95%,RH |
| Max. Operation Altitude |
3000m(>2000m power derating) |
| Certifications and Standards |
NTS TypeA, UNE 217002,UNE 217001, EN 50549-18-10,G99, G98,G100, CEI 0-21,EC62109-1&2,IEC 62619, IEC 62477-1,EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4, EN301 489-1/-17 |
Product details image
