Description :

Meet a 12 V / 100 Ah sodium-ion battery built for real-world performance: 1.2 kWh of rated energy, more than 3,000 cycles at full depth of discharge, and dependable operation even in freezing temperatures — an ideal power source for solar storage, backup power, and everyday 12 V systems.

Product Description:

The SW-SI-12V100AH is a 12-volt, 100-amp-hour sodium-ion battery designed to deliver steady, long-lasting power in demanding conditions. Rated at 1.2 kWh, it performs reliably across a wide temperature window — charging from -10°C to 55°C and discharging from -30°C to 55°C — making it a strong choice for cold-climate solar storage, backup systems, and off-grid applications.



Inside, 3 V / 10 Ah sodium-ion cells in a 4S10P configuration provide up to 100 A of continuous charge and discharge current (50 A recommended), with a 16 V charge limit and an 8–9 V discharge cut-off. The durable ABS housing is rated IP65, protecting the battery from dust and water ingress, while the compact 12.5 kg design makes installation and handling simple. With more than 3,000 cycles at 100% DOD (0.5C/0.5C, down to 70% capacity) and UN38.3 certification with MSDS documentation, the TP-SI-12V100AH offers dependable, low-maintenance performance for years to come.



Product Information Sheet

Model SW-SI-12V100AH
Cell material Sodium-ion
Nominal voltage 12V
Nominal capacity 100AH
Cell model/Configuration 3V10AH/4S10P
Rated energy 1.2KWH

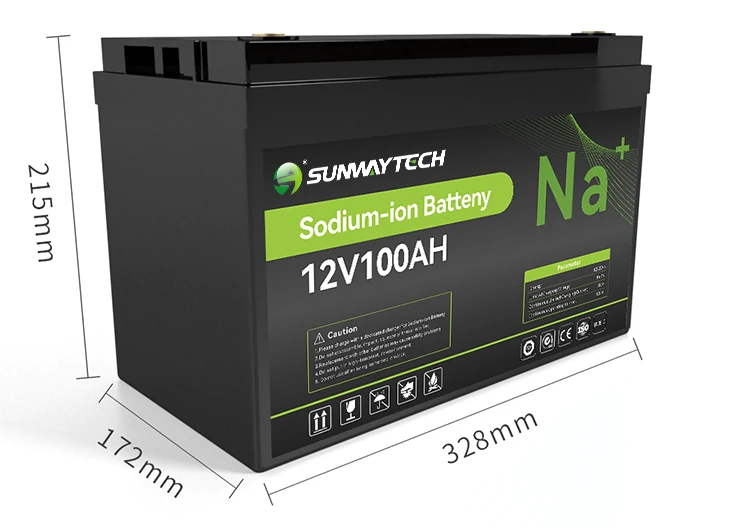

size 328*214.5*172mm(±2mm)
weight 12.5kg±0.5kg
Housing material ABS
Max charge/discharge current 100A/100A
Recommend Charge/discharge Current 50A/50A
Charge limit voltage 16V
Discharge cut-off voltage 8~9V
Cycle life ≥3000 times (25±2℃, 100%DOD, 0.5C/0.5C Cycle to capacity decay to 70% of rated capacity)
Operating Temperature Charge::-10 to 55℃/Discharge:-30 to 55 ℃
Storage environment Less than 3 months: -20 to 45°C@60±25%R.H
Less than 6 months: -10 to 35°C@60±25%R.H
Over one year: 0 to 25°C@60±25%R.H
IP rating IP65
Certification UN38.3 , MSDS
