Pack 1004.8Wh per cell. The CATL 314Ah LiFePO4 unit features standardized dimensions, allowing direct installation into current ESS structures. Increase rack capacity without modifying existing thermal or mechanical layouts.

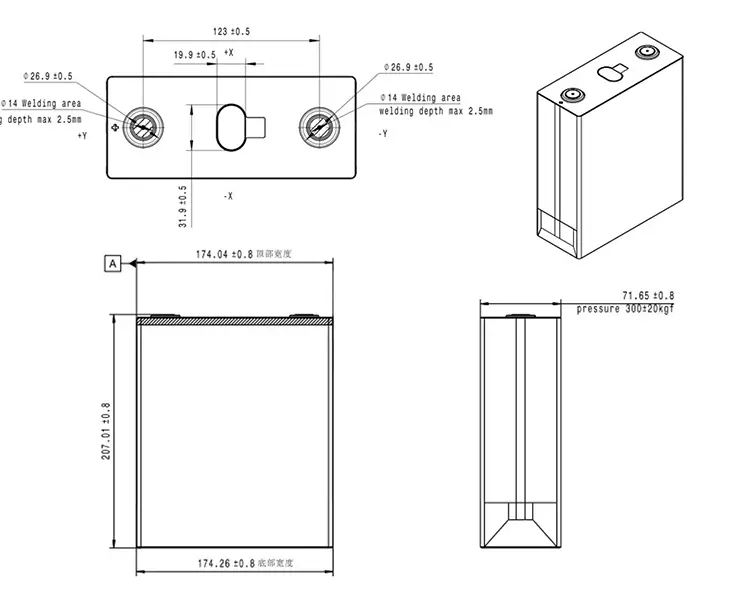

Operating at a nominal 3.2V, the CATL 314Ah LiFePO4 cell houses 1004.8Wh of energy inside a 174.26 x 71.65 x 204.41 mm aluminum shell. This specific footprint allows manufacturers to utilize current rack designs to scale up total energy output.
Each battery weighs 5.49kg. Initial internal resistance registers at 0.17±0.05mΩ. The unit is rated for standard 0.5P continuous charge and discharge. Cycle life testing proves the cell maintains 70% SOH after 7,000 cycles at a stable 25°C.
Built explicitly for C&I and utility-scale energy storage projects. It reduces land footprint requirements by packing more capacity into standard enclosures. Direct structural compatibility.
|
Parameter
|
Specification
|
|
Typical capacity
|
314 Ah
|
|
Operating voltage
|
2.5~3.65V, T>0°C
2.0~3.65V, T≤0°C
|
|
Impedance (1KHz)
|
0.17±0.05mΩ, Fresh cell
|
|
Shipping capacity
|
99±1Ah
|
|
Standard charge power
|
0.5P, 25±2°C
|
|
Max. continuous charge power
|
0.5P
|
|
Standard charge voltage
|
Cell max voltage 3.65V
|
|
Standard discharge power
|
0.5P, 25±2°C
|
|
Discharge cut-off voltage
|
2.5V, T>0°C
2.0V, T≤0°C
|
|
Residual capacity loss
|
Per month ≤3.5%, First Month
|
|
Operating temperature
|
Charging: 0~60°C
Discharging: -20~60°C
|
|
Cell Weight
|
5.49±0.30Kg
|
|
Storage temperature
|
-35~60°C
|
|
Storage ambient humidity
|
< 85% ROH, no condensation
|
|
dimension(W*H*T)
|
174.26*204.41*71.65mm
|
|
Rest SOC
|
≥8%
|
|
Altitude
|
＜5000m
|
|
Cycle performance
|
7000 Cycles@70%SOH
|
If you are interested in any product, please contact us. We will introduce our products to you in more detail
