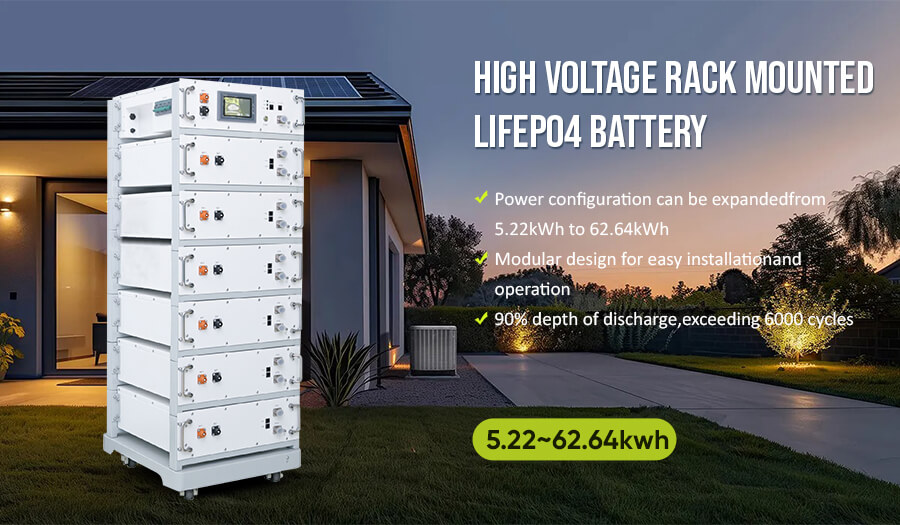

The HRH-5200 is a versatile, rack-mounted energy storage battery engineered for flexible and reliable power management. Utilizing safe and long-lasting LiFePO4 battery cells, this 51.2V system offers an exceptional lifespan exceeding 6,000 cycles. Its highly modular design allows users to seamlessly scale their power configuration from a base of 5.22kWh up to 62.64kWh, making it an adaptable solution for growing energy needs. Built with rigorous safety standards, it features a specially designed Battery Management System (BMS) with three-level overcurrent protection and a built-in thermal aerosol fire extinguishing system. With standard RS485 and CAN communication interfaces, the HRH-5200 ensures broad compatibility with mainstream inverter brands, providing a convenient and highly efficient energy storage solution.
Product Advantages and Features
Flexible Scalability:

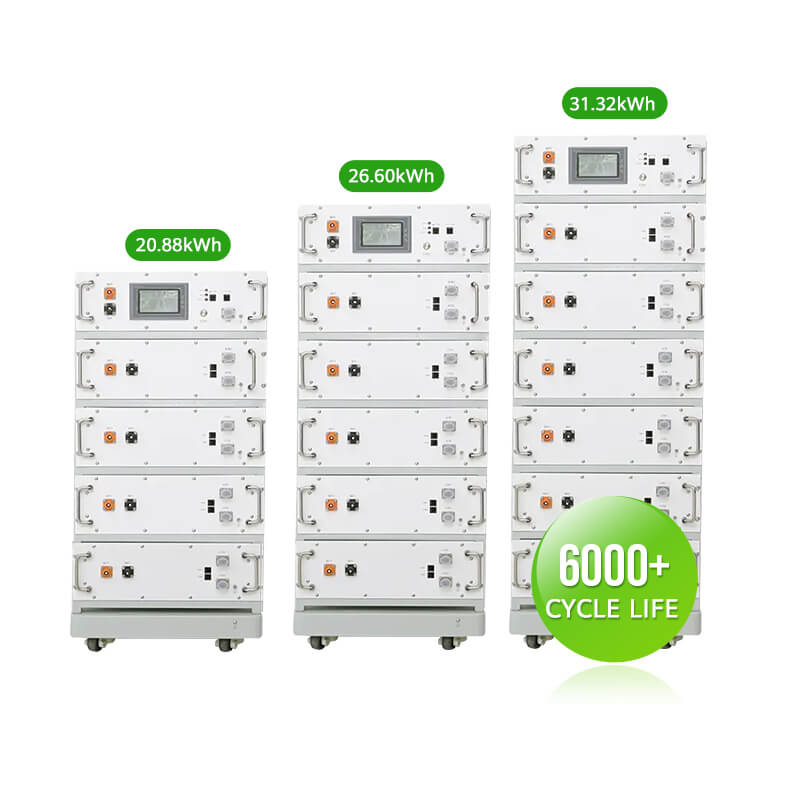

The system’s power configuration is highly adaptable, allowing for capacity expansion from 5.22kWh up to 62.64kWh by safely combining 4 to 12 modules in a single rack.
Modular & User-Friendly Design:

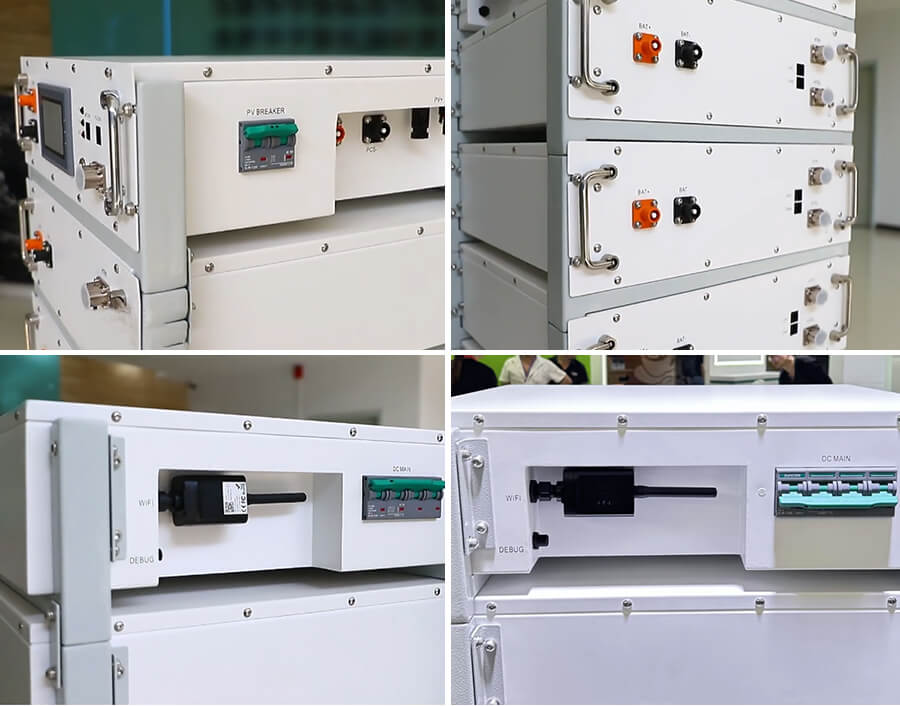

Features a modular rack-mounted architecture that guarantees easy installation, operation, and maintenance, complemented by a local display for straightforward monitoring.
Advanced Safety & Protection:
Equipped with a specially designed Battery Management System (BMS) that provides three-level overcurrent protection, alongside a passive, high-temperature triggered thermal aerosol fire protection system.
Exceptional Durability & Performance:
Built with high-quality LiFePO4 cells that deliver a 90% depth of discharge and an impressive lifecycle exceeding 6,000 cycles (at 0.5C, 25°C).
Broad Inverter Compatibility:

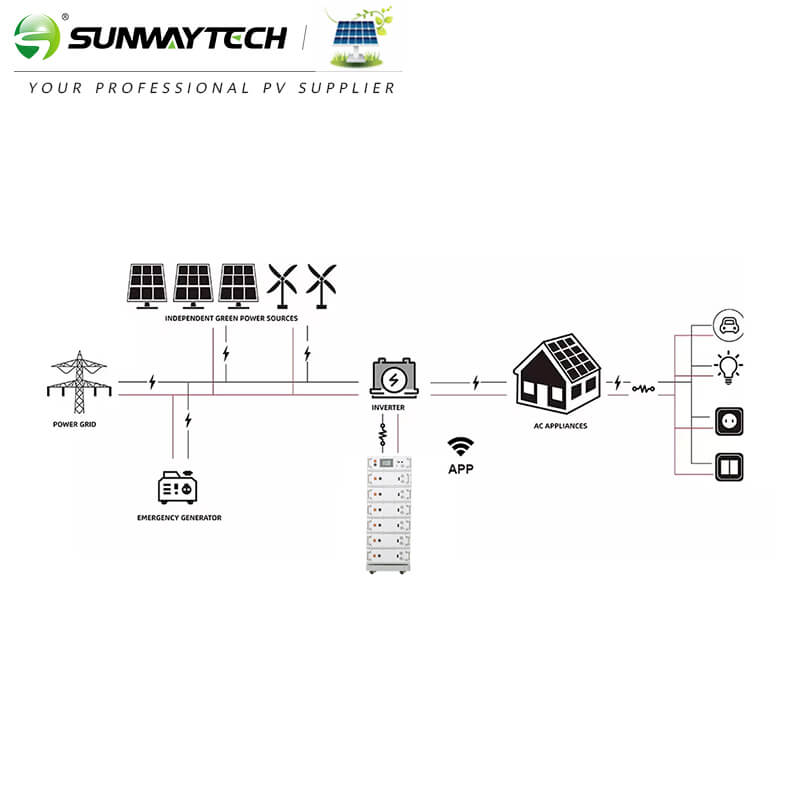

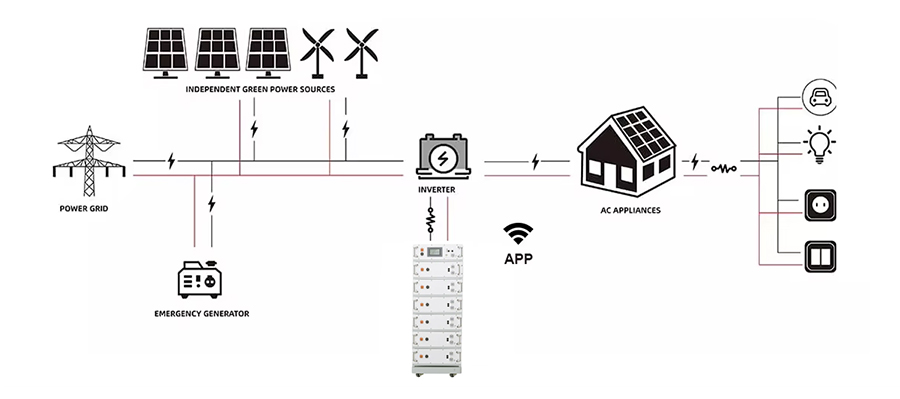

Integrates seamlessly with your existing energy infrastructure using standard RS485/CAN communication protocols, ensuring smooth compatibility with mainstream inverter brands.
Certified Reliability:
Meets rigorous international safety and quality standards, carrying CE, CB, MSDS, IEC, EMC, UN38.3, and CE-LVD certifications.
Product Information Sheet
| CELL PARAMETERS | |
| Cell Type | LiFePO4 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 102Ah |
| Cycle Life | ≥6000 @25°℃, 80%EOL) |
| BATTERY MODULE PARAMETERSI | |
| Configuration | 1P16S |
| Rated Capacity | 102Ah |
| Rated Energy | 5.2kWh |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 45.6-56.8V |
| Max Discharge Current | 100A |
| GENERAL PARAMETERS | |
| Modular Combination Quantity | 4-12 pos |
| Max Expansion Size(W*H*D) | 500*2190*560mm |
| Operation Temperature | 0-50℃ |
| Working Altitude | <2000m |
| Fire Protection System | Passive(high-temperature triggered) |
| Fire Extinguishing Agent | Thermal aerosol |
| Local Display | Yes |
Product details image
