100KW 215KWH Specification document
Product Advantages and Features
High-Capacity Energy Performance
The system provides 215 kWh of battery storage paired with a 100 kW AC output rating, supporting stable operation for commercial and industrial energy demands.
Integrated Outdoor System Architecture

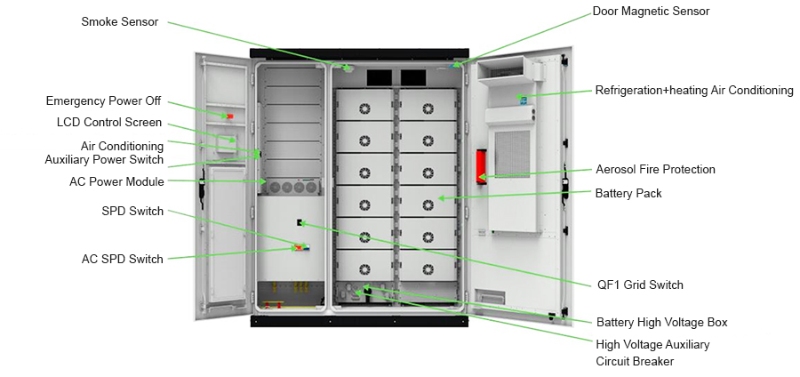

Battery modules, PCS, EMS, BMS, power distribution, thermal management, and fire protection are consolidated into a single weather-resistant cabinet designed for outdoor installation.
Scalable Modular Battery Design
A modular battery configuration enables flexible capacity adjustment and simplified maintenance, supporting system scalability based on project requirements.
Intelligent Communication & Energy Management
Multiple communication interfaces, including CAN, Ethernet, and RS485, enable real-time monitoring, system coordination, and intelligent energy control.
Durable Structure for Harsh Environments
With IP54-rated enclosure protection, electrical isolation, optimized air-cooling, and a wide operating temperature range, the system is built for reliable performance in demanding outdoor conditions.
Product Information Sheet
|
Energy Storage System
|
SWMonet-100TS(215kWh)
|
|
Battery Rated Energy Storage Capacity
|
215kWh
|
|
System Rated Voltage
|
768V
|
|
System Voltage Range
|
672V~864V
|
|
Battery Type
|
Lithium iron phosphate battery(LFP)
|
|
Battery Pack Series and Parallel Connection
|
1P*20S*125
|
|
Maximum Charge and Discharge Current
|
81A
|
|
Rated AC Power
|
100kW
|
|
Rated AC Current
|
140A
|
|
Rated AC Voltage
|
400V,3W+N+PE/3W+PE
|
|
Rated AC Frequency
|
50/60Hz
|
|
Current Total Harmonic Distortion Rate THDI
|
<5%(rated power)
|
|
Power Factor
|
-1 lead~+1 lag
|
|
Voltage Total Harmonic Distortion THDU
|
<3%(linear load)
|
|
Degree of Protection
|
IP54
|
|
Protection Level
|
/
|
|
Isolation Method
|
Transformer isolation
|
|
Power Consumption During Shutdown
|
<100W(without transformer)
|
|
Show
|
LCD
|
|
Relative Humidity
|
0~95%(no condensation)
|
|
Noise
|
<70dB
|
|
Ambient Temperature
|
-25°C~60°C(Derating above 45°C)
|
|
Cooling Method
|
Intelligent air Cooling
|
|
Altitude
|
2000m(>2000m derating)
|
|
BMS Communication
|
CAN
|
|
EMS Communication
|
Ethernet/485
|
|

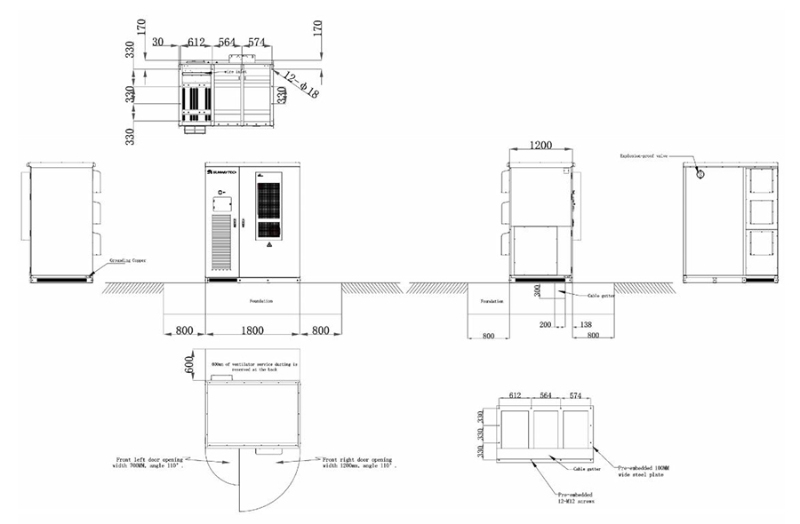

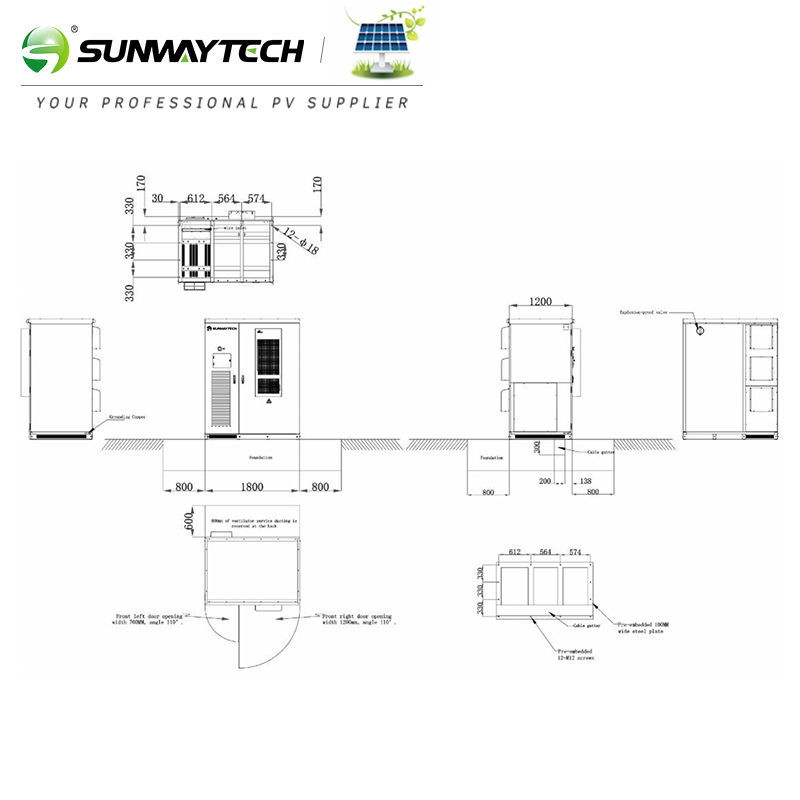

Dimensions(W*D*H)
|
1800*1200*2300mm
|
|
Weight(approx.)
|
3000kg
|
|
Battery System
|
|
Battery Type
|
Lithium iron phosphate battery(LFP)
|
|
Nominal Voltage
|
3.2V
|
|
Voltage Range
|
2.8V~3.6V
|
|
Nominal Capacity
|
280Ah
|
|
Maximum Operating Temperature Range(charging)
|
0~50°C
|
|
Maximum Operating Temperature Range(discharging)
|
-10~50°℃
|
|
Cell Series and Parallel connection
|
1P205
|
|
Rated Energy
|
17.92kWh
|
|
Nominal Voltage)
|
64V
|
|
Voltage Range
|
56V~72V
|
|
Weight(approx.)
|
135kg
|
|
Overall dimensions(W*D*H)
|
460*940*230mm
|
|
Rated Energy Storage
|
215kWh
|
|
System Rated Voltage
|
768V
|
|
System Voltage Range
|
672V~864V
|
|
Series and Parallel Mode
|
1P*20S*125
|
|
Number of Electrical Boxes Included
|
12
|
|
Weight(approx.)
|
1620kg
|

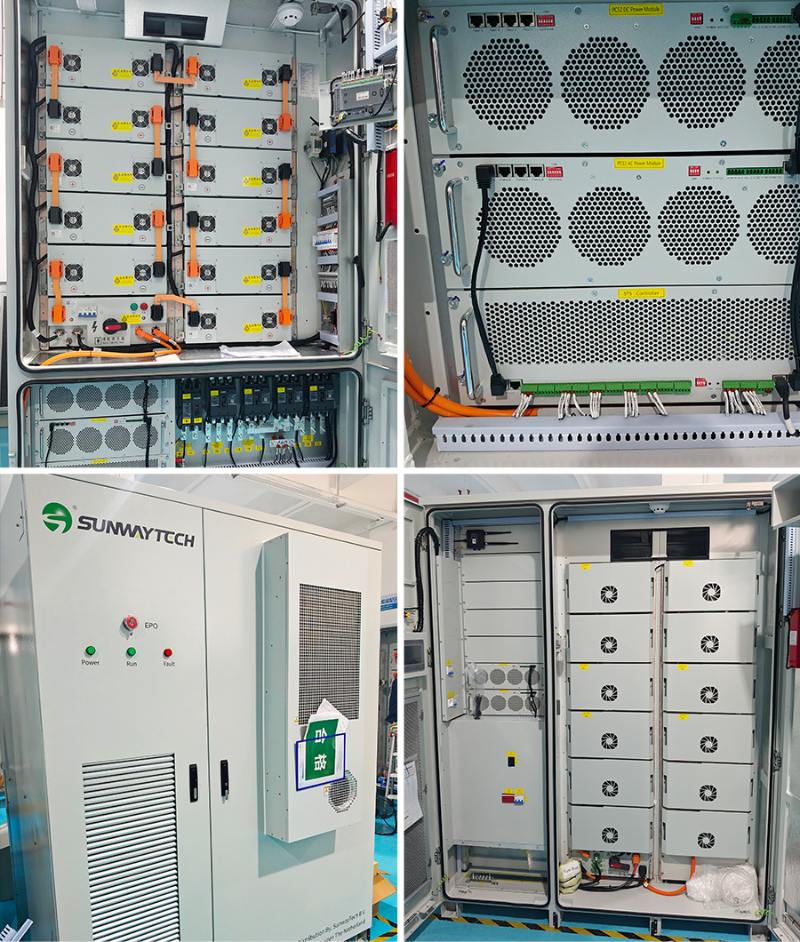

Product details image
